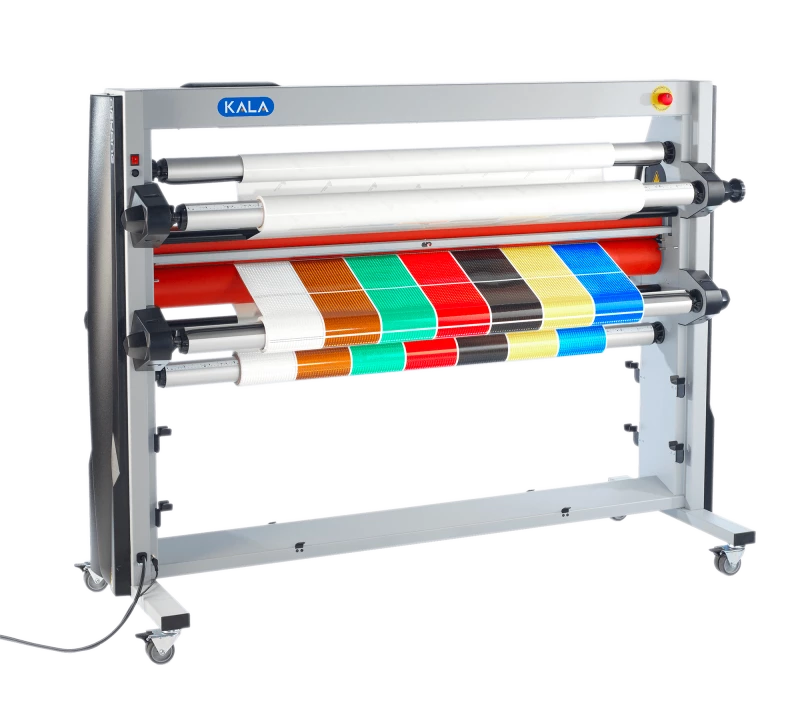

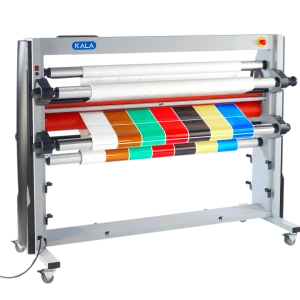

Arkane 1650 TS Laminator – Essential Performance for Road Sign

Engineered for road sign production with precision heat control and flawless double-sided encapsulation.

Call us for more info...
020 7064 9660

Road Sign Ready Performance – Designed to meet demanding traffic and safety signage applications.

Heated Top Roller (30–100°C) – Reliable adhesion for UV and textured prints.

One-Pass Double-Sided Encapsulation – Faster production with professional durability.

Built for Road Sign Specialists

Efficiency, Safety and Professional Finishing

When producing traffic and road signage, there is no room for compromise. The Arkane 1650 TS is engineered specifically for applications where durability, adhesion, and compliance matter most. It delivers perfect lamination across all types of media, including UV prints with irregular surfaces and high relief.

With a 165 cm (65”) working width and a heated top roller adjustable from 30°C to 100°C, it ensures strong bonding while maintaining material integrity. Pressure is adjusted directly on the substrate according to its thickness, giving operators precise control over every job.

Technical Specifications

Specification	Details
Working Width	165 cm (65")
Heating Range	30–100°C (86–212°F)
Roller Opening	Up to 50 mm (2")
Max Speed	Up to 6 m/min
Thickness Capacity	Up to 50 mm (2")
Application Types	Lamination, tape application, thermoformed polyester films

For road sign manufacturers, this machine becomes a production cornerstone — consistent, powerful, and purpose-built.

The Arkane 1650 TS is more than a laminator; it is a finishing solution that improves workflow efficiency. One-pass double-sided encapsulation reduces handling time and ensures even protection on both sides of the substrate.

A gas cylinder enhances operational stability, while the additional safety mechanism slows the descent of the feeding tray for better operator protection. The ability to laminate up to 50 mm thickness makes it suitable for rigid boards and mounted signage.

Optional Enhancements

Option	Benefit
LED Kit	Clear visibility for precise quality control
In-Line Cutting	Two indexable cutting heads for efficient trimming

For businesses focused on road signage, compliance, and long-term outdoor durability, the Arkane 1650 TS provides the control, reliability, and finishing quality needed to maintain professional standards and production efficiency.
