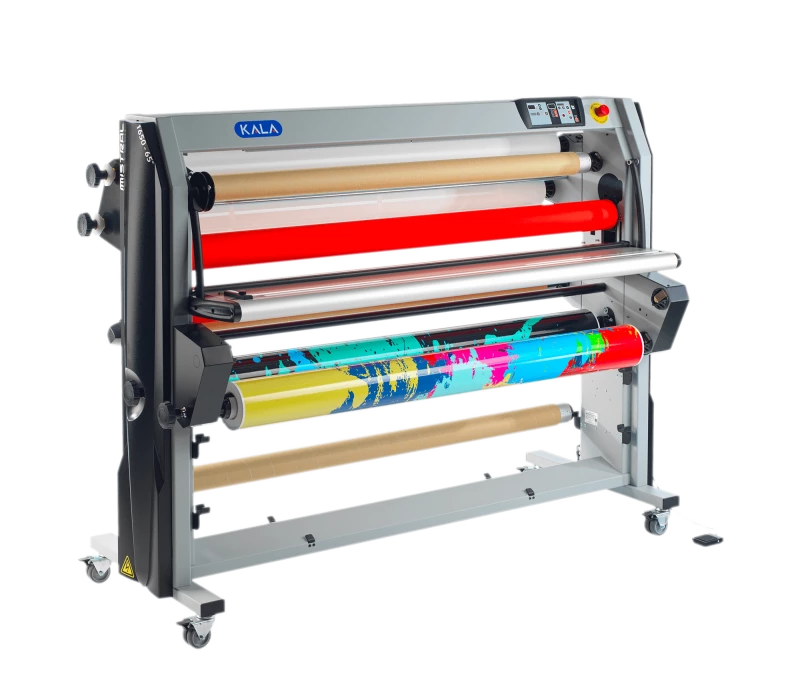

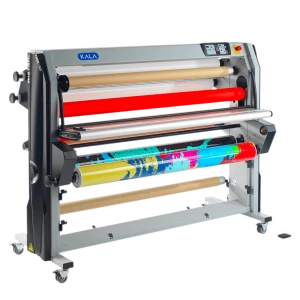

Mistral 1650 Dual Feeding Laminator – Faster Media Changes

Dual feeding efficiency with precision pressure control for high-volume, professional wide format finishing.

Call us for more info...
020 7064 9660

Dual Feeding System – Pre-load media for faster changeovers and reduced downtime.

Heated Top Roller (30–60°C) – Superior adhesion on standard, UV, and textured prints.

Auto-Calibration Technology – Maintains perfect pressure and roller parallelism at all times.

Built for High Production Environments

Smart Features, Safer Operation, Greater Control

When your workflow demands speed and flexibility, the Mistral 1650 Dual Feeding delivers. Designed for busy print shops handling frequent media changes, it allows operators to pre-load films directly onto the machine. That means less downtime, faster changeovers, and smoother production cycles.

With a working width of 165 cm (65”), it pairs perfectly with popular mid-to-large format printers. The heated top roller (30–60°C) ensures optimal adhesive flow, while adjustable pressure settings let you fine-tune performance depending on the material.

Technical Specifications

Specification	Details
Working Width	165 cm (65")
Roller Opening	50 mm (2")
Heating Range	30–60°C
Max Speed	6.5 m/min (21 ft/min)
Thickness Capacity	Up to 50 mm (2")
Feeding Mode	Manual or full reel

Whether you’re laminating, performing one-pass double-sided encapsulation, or applying tape, this machine keeps production moving without compromise.

Precision is not just about pressure — it’s about consistency. The patented auto-calibration system permanently monitors roller parallelism and pressure balance, ensuring even lamination from edge to edge.

The included gas cylinder improves stability, while the safety descent control slows the feeding tray for enhanced operator protection. Adjustable pressure and speed give you total control across different substrates — from delicate prints to thick mounted boards.

Optional Upgrades to Elevate Performance

Option	Benefit

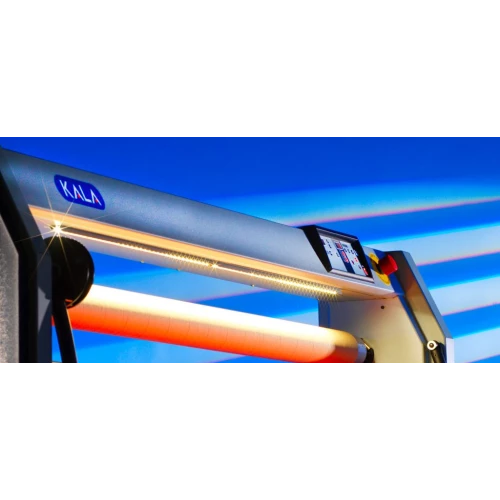

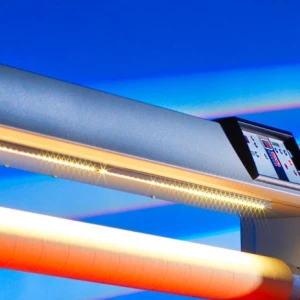

LED Lighting	Enhanced visibility for quality control

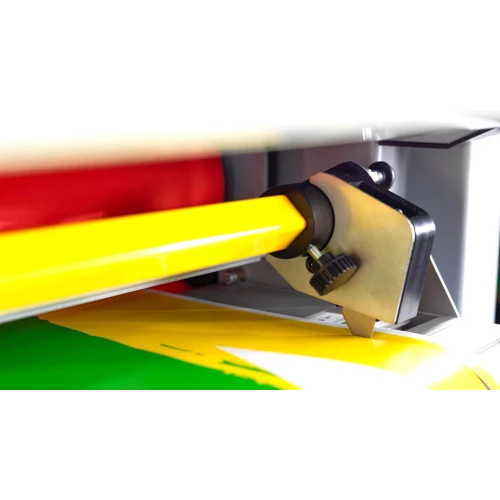

In-Line Cutting	Dual cutting heads for efficient trimming
Magnetic Anti-Static Cord	Reduces static discharge from sensitive media
Remote Control	Greater operational convenience

For production environments that value speed, precision, and reduced operator effort, the Mistral 1650 Dual Feeding is more than a laminator — it’s a workflow upgrade designed to keep your finishing department ahead of demand.
