Canon imagePROGRAF TM-510M 24 All-in-One CAD Printer

Canon TM-510M Compact 24 CAD Multifunction Printer

Print, scan, connect CAD workflow simplified in one 24 machine.

Call us for more info...
020 7064 9660

Two machines, one footprint

A high-performance printer and scanner integrate into a single, space-saving 24" design, simplifying everyday workflow.

Built for speed

Print a full A1 CAD drawing in just 20 seconds, and scan originals at 10 inches per second with 600 dpi optical resolution.

Print from anywhere

Native support for Apple (iOS/macOS), Android (Mopria), and IPP Everywhere means drawings and documents print straight from any mobile device.

Overview

Technical Specifications

Compact desks shouldn't mean compromised workflow. The imagePROGRAF TM-510M packs a high-performance printer and scanner into one space-saving 24" unit, ideal for smaller studios, site offices, or teams who need CAD output without dedicating a room to equipment.

Speed doesn't take a back seat to size. A full A1 CAD drawing prints in just 20 seconds, and document scanning runs at 10 inches per second with 600 dpi optical resolution, capturing fine linework cleanly on the first pass. Dual-sided LED illumination removes shadows and creases from handled originals, so scanned copies come out flawless without extra editing.

Connectivity is built for a mobile workforce. Whether the device in hand is an iPhone, iPad, Android tablet, or a laptop on a generic network, the TM-510M supports Apple (iOS/macOS), Android (Mopria), and IPP Everywhere printing meaning CAD drawings, maps, posters, or documents can be sent directly from a smartphone or tablet, on-site or in the office.

For teams that need reliable, fast, large-format output in a smaller footprint, the TM-510M delivers professional-grade results without the bulk.

Feature	Detail	Why it matters
Print width	24 inches (A1)	Compact footprint suited to smaller workspaces
Design	Integrated printer + scanner	Space-saving, single-unit workflow
Print speed	A1 CAD drawing in 20 seconds	Fast turnaround on technical drawings
Scan speed	10 inches per second	Rapid document digitisation
Scan resolution	600 dpi optical	Sharp, detailed scans of fine linework and text
Scanning technology	Dual-sided LED illumination	Removes shadows and creases for clean copies
Mobile printing	Apple (iOS/macOS)	Print directly from iPhone, iPad, or Mac
Mobile printing	Android (Mopria)	Print directly from Android devices
Network printing	IPP Everywhere	Generic cloud/network printing, device-agnostic
Ideal for	CAD drawings, maps, posters, documents	Versatile output for technical and design teams

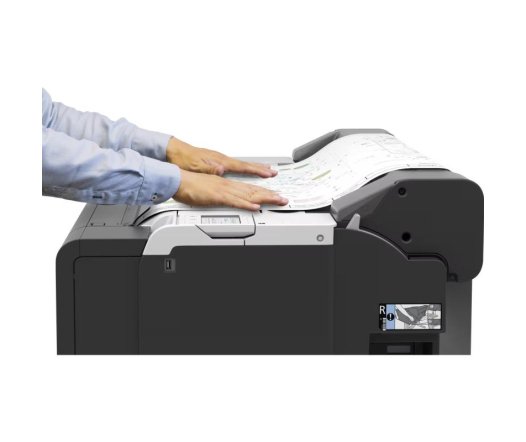

Perfect Colours - Canon imagePROGRAF TM-510M 24 All-in-One CAD Printer
