XLA 170 – Smart X/Y Cutter with Barcode Sync

Barcode Smart. Fully Automatic. Cut with Confidence.

Call us for more info...
020 7064 9660

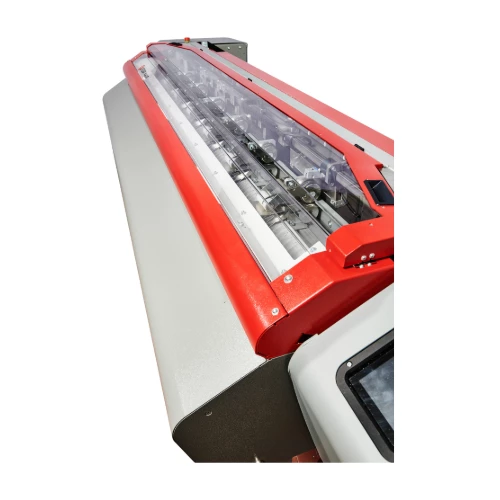

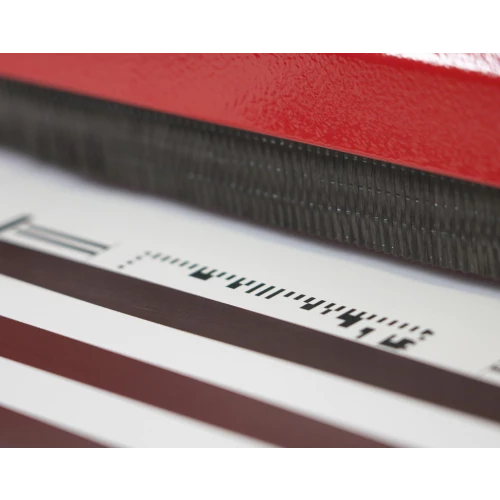

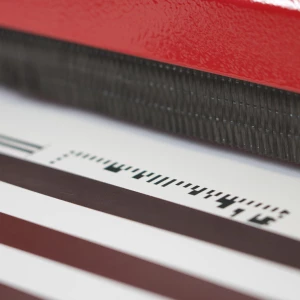

Automatic Blade Positioning via Barcode

Reads barcodes printed on the media to automatically reposition vertical blades for random-size trimming without manual input. (Caldera V12 compatible)

True Unattended X/Y Cutting

World’s first fully automatic X/Y cutter with both barcode-guided vertical cutting and image tracking horizontal blades—perfect for mixed-size trimming on a single roll.

Flexible Media Handling

Supports up to 1mm thick media including photo paper, vinyl, PVC, film, canvas, and laminated prints. Ideal for a wide range of finishing workflows.

Specifications

Applications

Max Cutting Width: 160 cm / 63 in

Min Cutting Width: 70 cm / 27 in

Max Cutting Thickness: 1 mm (40 mil)

Feeding Speed: 18 meters/min

X Cutting Accuracy: ±0.5 mm

Y Cutting Accuracy: ±0.5 mm

Max Roll Diameter:

26 cm – 80 kg

60 cm – 200 kg (Heavy Duty accessory)

60 cm – 400 kg (with JRU170 accessory)

Barcode Compatibility: Yes (Caldera V12 and supported RIPs)

Machine Dimensions (WxDxH): 281 × 106 × 110 cm

Shipping Dimensions: 295 × 152 × 145 cm

Net Weight: 320 kg

Gross Weight: 650 kg

Unattended Mixed-Size Print Trimming
Ideal for printers producing mixed-format jobs—automatically adjusts blade positions roll-to-roll using barcode data.

Poster & Graphic Cutting
Automate standard or custom-size poster and banner trimming with unmatched ease and accuracy.

Laminated and Printed Media Finishing
Supports various coated and encapsulated prints while reducing manual labor and setup time.

Print Shops with Caldera Workflow
Fully integrates with Caldera V12 to streamline barcode-based workflows and reduce operator involvement.
