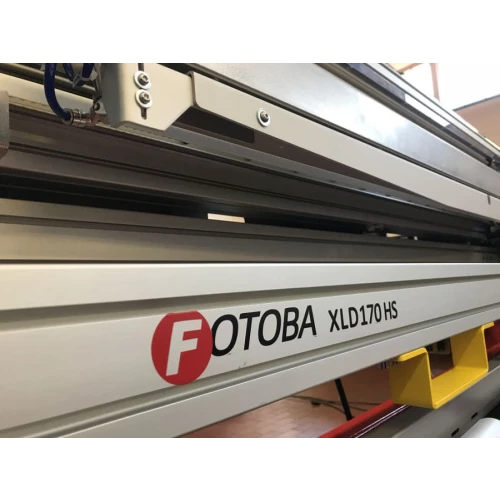

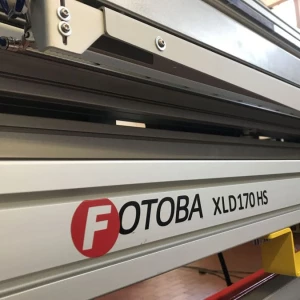

Fotoba XLD 170HS Cutter | High-Speed Automatic Trimming System

Name: Fotoba XLD 170HS Cutter | High-Speed Automatic Trimming System
Brand: Fotoba
Availability: InStock

Twice the speed. Maximum precision. Zero compromise.

Call us for more info...
020 7064 9660

Double-Cut Technology

Choose between one-pass (for paper) or two-pass cutting to dramatically reduce production time — without sacrificing accuracy.

High-Speed Feeding

Processes media at up to 34 meters per minute, making it the fastest model in the XLD range.

Flexible Media Compatibility

Like the XLD 170, it supports all flexible substrates up to 1mm thick, with full accessory compatibility

Overview

Technical Specifications

The Fotoba XLD 170HS is the high-speed evolution of the proven XLD 170 platform. Featuring cutting-edge dual-cut technology, the 170HS delivers unmatched production throughput. It comes in two models:

One-pass dual cut (paper only): Enables rapid trimming of small formats, doubling productivity.
Two-pass dual cut: Handles all types of flexible media up to 1.7 meters (67”) wide with extreme precision.

Engineered for commercial environments that demand fast turnaround without sacrificing quality, the XLD 170HS is fully compatible with all standard XLD accessories — delivering the best of both performance and flexibility.

Max Cutting Width: 170 cm (67 in)
Min Cutting Width: 28 cm (11 in)
Max Roll Diameter:
- 26 cm / 80 kg
- 60 cm / 200 kg (with Heavy Duty accessory)
- 60 cm / 400 kg (with JRU170 accessory)
Max Cutting Thickness: 1 mm
Feeding Speed: 34 meters/min
X Cutting Accuracy: ±1 mm
Y Cutting Accuracy: ±1 mm
Machine Dimensions: 281 × 87 × 110 cm
Shipping Dimensions: 303 × 103 × 145 cm
Net Weight: 250 kg
Gross Weight: 515 kg
