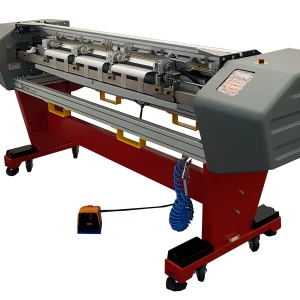

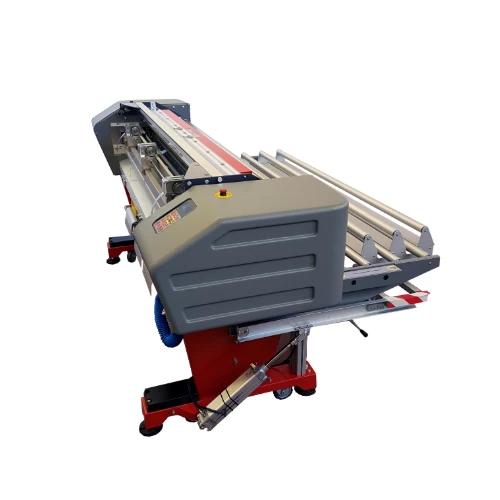

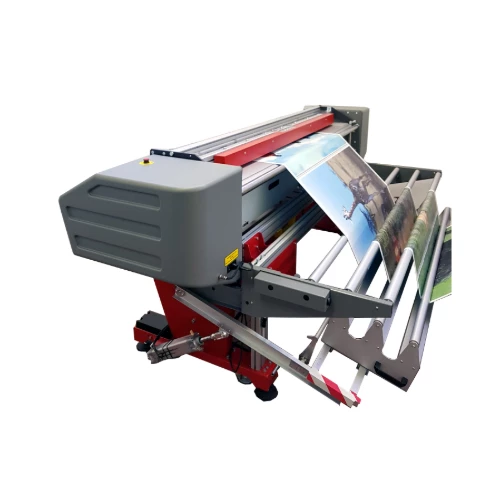

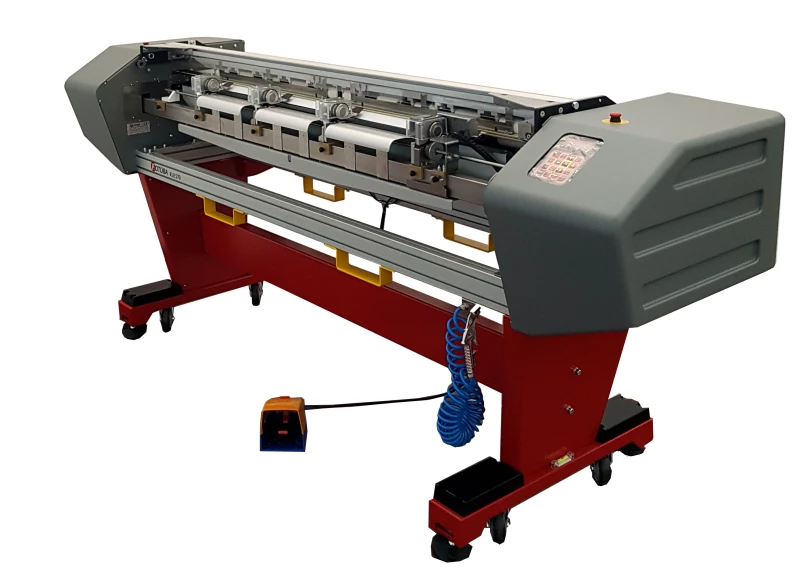

Fotoba XLD 170 WP Digital Wallpaper Cutter – 170cm

Name: XLD 170 WP
Brand: Fotoba
Availability: OutOfStock

Engineered for Precision. Built for Production.

Call us for more info...
020 7064 9660

Delivers vertical precision of ±0.068 mm and horizontal tolerance of 1 mm for perfect alignment of wallpaper tiles and printed graphics.

Supports rolls up to 400 kg (with optional accessories), cutting media up to 1 mm thick with a feeding speed of 18 meters per minute.

Handles cutting widths from 28 cm to 170 cm, ideal for everything from small panels to full-size wallcoverings and tiled murals.

Specifications

Applications

Max Cutting Width: 170 cm / 67 in

Min Cutting Width: 28 cm / 11 in

Max Roll Diameter Allowed:

26 cm – 80 kg

60 cm – 200 kg (with Heavy Duty accessory)

60 cm – 400 kg (with JRU170 accessory)

Max Cutting Thickness: 1 mm

Feeding Speed: 18 meters/min

X Cutting Accuracy: ±1 mm

Y Cutting Accuracy: ±0.068 mm

Net Weight: 250 kg

Gross Weight: 515 kg

Dimensions (WxDxH): 281 × 87 × 110 cm

Shipping Dimensions: 303 × 103 × 145 cm

High-End Interior Installations
Deliver seamless, professional wallcoverings for residential, retail, and corporate spaces.
Production Print Finishing
Designed for efficiency in high-volume environments—cut, align, and finish multiple wallpaper tiles in record time.
Large Format Print Studios
Ideal for trimming complex tiled graphics and oversized print materials with speed and precision.
