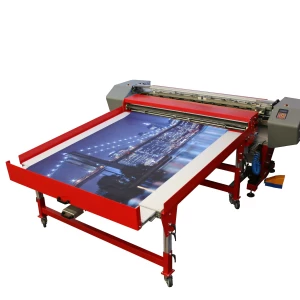

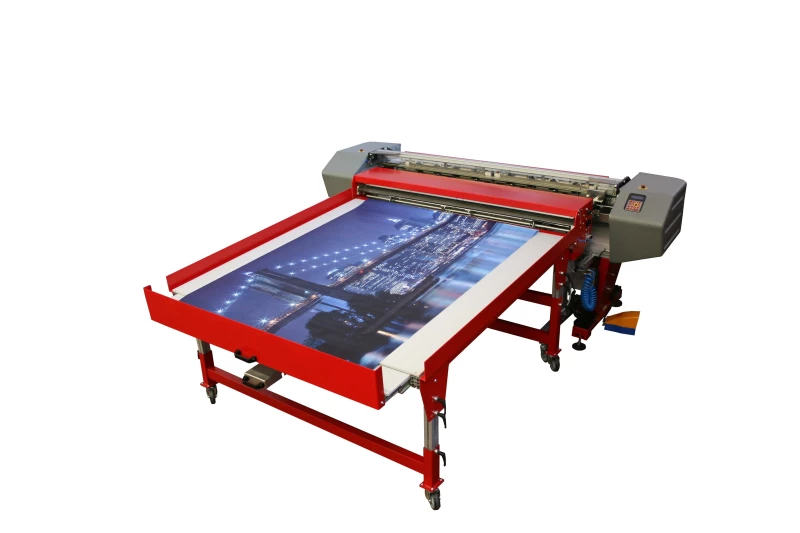

XLD170 Cutter with Inline Buffer and Stacker System

Hands-Free Collection for High-Speed XLD Cutting

Call us for more info...
020 7064 9660

Integrated buffer feeds directly into the stacker, matching the XLD170’s cutting speed for smooth, uninterrupted media handling.

Reduces manual labor—while the cutter runs, the operator is free to manage other tasks. Ideal for high-output environments.

Height- and tilt-adjustable table, anti-crease rollers, and easy-to-move rail system offer a tailored fit for every production space.

Specifications

Applications

Compatible Cutter: XLD170

Max Cutting Width: 170 cm / 67 in

Min Cutting Width: 28 cm / 11 in

Max Collecting Length: 300 cm / 118 in

Max Load Capacity: 200 kg

Motorized Buffer Feed: Yes

Table Adjustments:

Height: Adjustable

Inclination: Adjustable

Anti-Crease System: Adjustable to minimize media memory effect

Rail System: Slide-away design for quick repositioning

Automated Synchronization: Cutter speed matched

Net Weight: 355 kg (120 kg + 235 kg)

Gross Weight: 679 kg (254 kg + 425 kg)

Assembled Dimensions: 344 × 182 × 108 cm

Shipping Dimensions:

Box 1: 200 × 86 × 144 cm

Box 2: 202 × 202 × 77 cm

Post-Cut Collection for Posters, Graphics & Banners
Collects media right after trimming—perfect for stackable, flat prints up to 3m in length.

Wallpaper & Vinyl Output Handling

Gentle stacking reduces curl and media memory for clean handoff to finishing or packaging.

Unattended Cutting Workflows
Designed for businesses aiming for automation, higher throughput, and less operator dependence.
