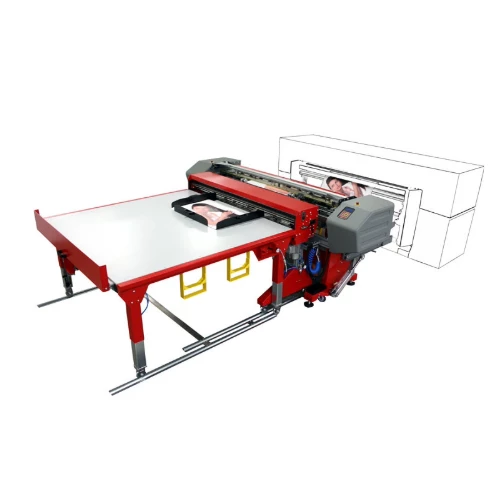

XLD170HSS High-Speed Cutter and Inline Buffer

High-Speed Cutting with Seamless Media Flow

Call us for more info...
020 7064 9660

High-Speed Single Cut Operation

The XLD170HSS cuts at double the speed of standard models—optimized for efficiency without compromising precision.

Inline Buffer for Continuous Workflow

Integrated buffer feeds trimmed media smoothly toward the output area, reducing manual handling and improving production speed.

Standard Horizontal Blade for All Media

Equipped with a durable horizontal blade, ideal for cutting a wide variety of flexible media up to 1 mm thick, including vinyl, photo paper, and laminated prints.

Specifications

Applications

Model: XLD170HSS – High-Speed Single Cut
Max Cutting Width: 170 cm / 67 in
Min Cutting Width: 28 cm / 11 in
Max Cutting Thickness: 1 mm
Feeding Speed: 34 meters/min
X Cutting Accuracy: ±1 mm
Y Cutting Accuracy: ±1 mm
Blade Type (Horizontal): Standard – Compatible with all media
Inline Buffer: Included – For smoother media transition
Net Weight: 250 kg
Gross Weight: 515 kg
Machine Dimensions: 281 × 87 × 110 cm
Shipping Dimensions: 303 × 103 × 145 cm

Fast Poster and Banner Trimming
Delivers quick, clean cuts for print shops handling high volumes of rigid or flexible media.

Wallpaper and Graphic Cutting
Perfect for seamless, precise horizontal cuts, even on laminated or encapsulated prints.

Automated Finishing Lines
Combined with an inline buffer, the XLD170HSS is ideal for businesses seeking efficient, high-speed finishing with less operator intervention.
