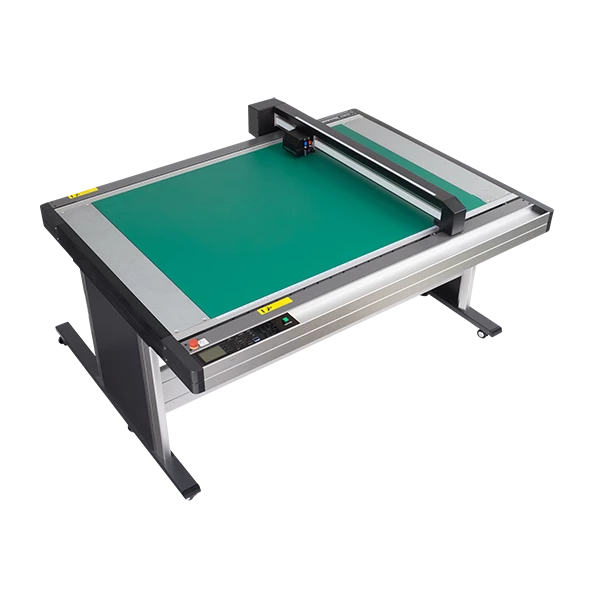

Graphtec FCX2000

The FCX2000 is the ultimate solution for prototyping and small production runs of rigid materials without the use of a cutting die and features head pressure of up to 1kg.


Graphtec FCX2000 - small thumbnail
Graphtec FCX2000

Key features

  • Available In 3 Widths: 60cm | 120cm | 180cm
  • Max Cutting Speed: Up To 400mm/s
  • Networking Capabilities
  • Number Of Mountable Tools: 2
  • Roll Media Stocker
  • Interface: USB 2.0 Offline & USB 2.0 Cable
  • Buffer Memory: 2MB
  • Large Graphic Type LCD Control Panel
  • Warranty: 2 Years

Buying options


Call us for more info...
020 7064 9660

“Work Smarter, Not Harder”.

The FCX2000 is the ultimate solution for prototyping and small production runs of rigid materials without the use of a cutting die.

Reduce media waste/ processing time with Graphtec’s precision cutting performance and dedicated software. Added offline (USB) operation enables users of all skill levels to easily process materials.

Precision cutting is achieved by enhancements to the rigidity of moving mechanism that deflection due to pressure during cutting, this has enabled new functions such as curved creasing & scoring lines.

Graphtec flatbed cutting plotters meet the wide variety of application used in prototyping and short production runs of packaging used in industrial materials.

Machine Specifications:

  • Configuration: Digital Servo
  • Media Hold Down Methods: Vacuum | Electrostatic
  • Graphic Type LCD Display With Back Light
  • Networking Ethernet Port
  • Mountable Number Of Tools: 2 Tools (When Second Pen Kit Installed)
  • Maximum Cutting Force: Tool 1: 500gf | Tool 2: 1kg
  • Maximum Cutting Speed: 400mm/s
  • Roll Media Stocker
  • Interface: USB 2.0 Offline | USB 2.0 Cable
  • Buffer Memory: 2MB


Performance Specifications:

  • Minimum Character Size: Approx. 10mm Square (Varies Depending On Character Font & Type Of Media)
  • Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm | HP-GL™: 0.025 mm
  • Repeat-ability: Max. 0.1 mm
  • Perforation Cutting: Yes (Performed By Force Control)
  • Die-Cutting: Yes
  • Kiss Cutting: Yes

Media Specifications:

  • Self Adhesive Vinyl – Up To 0.25mm Thick
  • Heavy Paper / Board – Up To 0.5mm
  • Pattern Paper / Oil Board – Up To 1.0mm
  • Compressed Foam Sheet – Up To 0.8mm Thick
  • Sandblast Resist Rubber – Up To 1.0mm Thick
  • Cardboard (F/G Flute) – Up To 1.1mm Thick
  • Clear Sheet For Plastic Boxes – Up To 1.0mm Thick
  • High Intensity Reflective Film – Up To 1.0mm
