Graphtec FCX4000

The FCX2000 is the ultimate solution for prototyping and small production runs of rigid materials without the use of a cutting die and features head pressure of up to 1kg.


Graphtec FCX4000 - small thumbnail
Graphtec FCX4000

Key features

  • Available In 3 Widths: 60cm | 120cm | 180cm
  • Max Cutting Speed: Up To 400mm/s
  • Networking Capabilities
  • Number Of Mountable Tools: 2
  • Roll Media Stocker
  • Interface: USB 2.0 Offline & USB 2.0 Cable
  • Buffer Memory: 2MB
  • Large Graphic Type LCD Control Panel
  • Warranty: 2 Years

Buying options


Call us for more info...
020 7064 9660

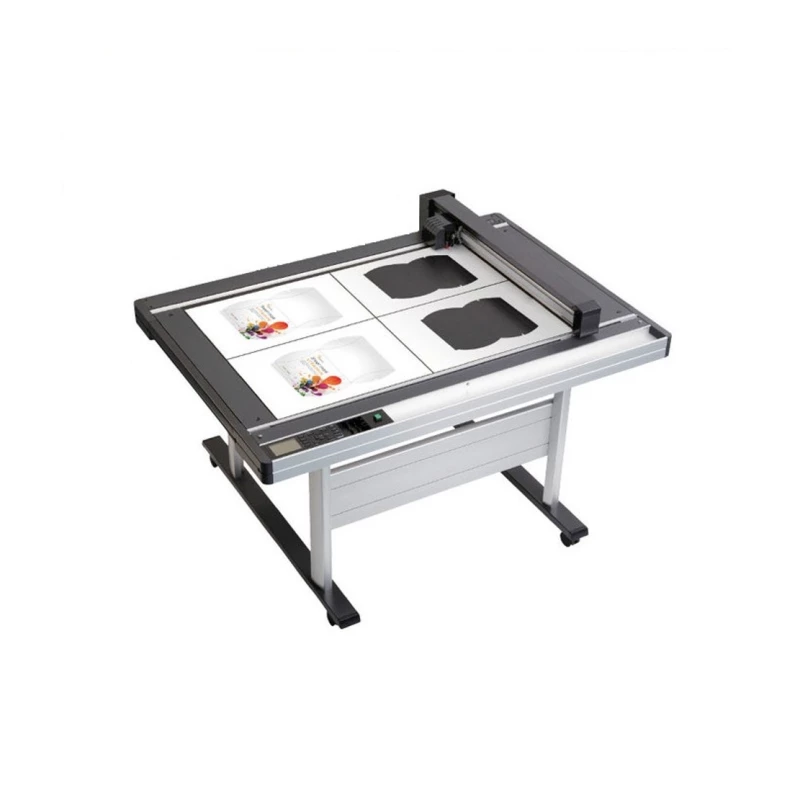

The Graphtec FCX4000 Series Flat Bed Cutting Plotter is an affordable cutting solution for small to medium print on demand jobs and uses electrostatic technology to firmly hold media to the table.

The FCX4000 offers easy to use and intuitive operation with its new 3.7” LCD screen control panel and USB / Barcode functionality.

2 different table size are available. The effective cutting area of the 50ES model is expanded for supporting 2 sheets of A3+ size, and the 60ES model supports 4 sheets of A3+ size. The FCX4000 is more suitable in the use of post-processing of Print On Demand jobs than its bigger brother, the FCX2000.

Machine Specifications:

  • Configuration: Digital Servo
  • Media Hold Down Method: Electrostatic
  • Graphic Type LCD Display With Back Light
  • Networking Ethernet Port
  • Mountable Number Of Tools: 2
  • Maximum Cutting Force: Tool 1: 600gf | Tool 2: 600gf
  • Maximum Cutting Speed: 750mm/s
  • Interface: USB 2.0 Offline | USB 2.0 Cable
  • Buffer Memory: 2MB

Performance Specifications:

  • Minimum Character Size: Approx. 10mm Square (Varies Depending On Character Font & Type Of Media)
  • Programmable Resolution: GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm | HP-GL™: 0.025 mm
  • Repeat-ability: Max. 0.1 mm
  • Perforation Cutting: Yes (Performed By Force Control)
  • Die-Cutting: Yes
  • Kiss Cutting: Yes

Media Specifications:

  • Self Adhesive Vinyl – Up To 0.25mm Thick
  • Heavy Paper / Board – Up To 0.5mm
  • Pattern Paper / Oil Board – Up To 1.0mm
  • Compressed Foam Sheet – Up To 0.8mm Thick
  • Sandblast Resist Rubber – Up To 1.0mm Thick
  • Cardboard (E Flute) – Up To 1.5mm Thick
  • Cardboard (F/G Flute) – Up To 1.2mm Thick
  • Rubber Sheet: 1 ~ 2mm
  • Clear Sheet For Plastic Boxes – Up To 1.0mm Thick
  • High Intensity Reflective Film – Up To 1.0mm
